Datenblatt
Metalloxid Widerstände
RSSFB
Snap-in Anschlüsse
Model
|
Power Rating (W)
|
Maximum Operting
Voltage (V)
|
Maximum
Continous
Overload
Voltage (V)
|
Maximum
Intermittent
Overload Voltage (V)
|
Resistance Range E
24 Series
|
Resistance
Tolerance
|
| |
|
RSS3FB
|
3
|
500
|
600
|
750
|
0,2 to below 10
10-100 K
|
K(+10 %)
J (+ 5 %)
|
RSS5FB
|
5
|
500
|
800
|
1500
|
1 to below 10
10-6,8K
|
K(+10 %)
J (+ 5 %)
|

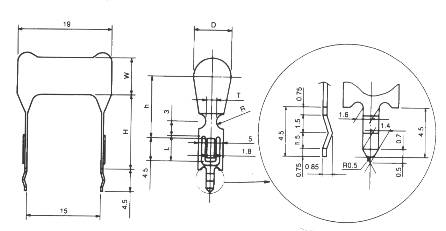

Model
|
Dimensions
(mm)
|
|
| |
D
|
H
|
h
|
W
|
T
|
R
|
L
|
|
RSS3FB
|
7,5
|
H1=15
H2=25
|
h1=12
h2=22
|
7,5
|
T1=2,0
T2=3,0
|
R1=1,5
R2=1,0
|
L1=5
L2=15
|
Minimum order is 1.000
units
|
RSS5FB
|
8,0
|
H1=15
H2=25
|
h1=12
h2=22
|
8,5
|
T1=2,0
T2=3,0
|
R1=1,5
R2=1,0
|
L1=5
L2=15
|
Minimum number of untis per
package is 50 units
|
|
|
